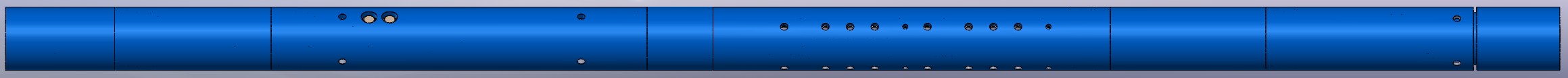

The DADI Air Motor is a slow speed, moderate torque motor assembly which has been developed to drill directional oil and gas wells and other directional boreholes with conventional air hammers. The assembly rotates the hammer, taking the place of drill pipe rotation imparted by the rig. This allows the bent sub in our assembly to steer and build angle.

The DADI motor has a unique design and is practically vibration free. Shock measurements obtained while drilling with the AIRR 6, a 6” hammer, and a 6 ¼” bit showed shock values were typically below 8 G’s in the X, Y, and Z directions. Our initial drilling with this assembly has demonstrated no adverse effects on EM or wire line measurement tools.

AIRR 4

OD - 3 7/8"
OAL - 84"
Bend to EOT - 22.5"
Weight - 225#
Connections: 2 3/8" Reg (Box by Box) or (Box to Pin)
Torque - ~800 ft/lb
Free Speed RPM - 59
Max Power RPM - 32
Air Consumption at Max Power - @90 psi - 72 cfm / @180 psi - 144 cfm / @350 psi - 280 cfm
Air consumed by the motor is exhausted outside to the annulus to aid in borehole cleaning. All remaining air is diverted to power the hammer.
Available Bent Sub: 0 - 3 Degs

BROCHURE

AIRR 6

OD - 5 1/2"
OAL - 108"
Bend to EOT - 25.6"
Weight - 495#
Connections: 3 1/2" Reg (Box by Box)
Torque - ~1544 ft/lb
Free Speed RPM - 30
Air Consumption at Max Power - @90 psi - 72 cfm / @180 psi - 144 cfm / @350 psi - 280 cfm
Air consumed by the motor is exhausted outside to the annulus to aid in borehole cleaning. All remaining air is diverted to power the hammer.
Available Bent Sub: 0 - 3 Degs

BROCHURE

AIRR 8*

OD - 6 3/4"
OAL - 117"
Bend to EOT - 38"
Weight - 850#
Connections: 4 1/2" Reg (Box by Box)
Torque - ~2450 ft/lb
Free Speed RPM - 20
Air Consumption at Max Power - @90 psi - 116 cfm / @180 psi - 144 cfm / @350 psi - 428 cfm
Air consumed by the motor is exhausted outside to the annulus to aid in borehole cleaning. All remaining air is diverted to power the hammer.
Available Bent Sub: 0 - 3 Degs
*Currently Under Development
